7" QUAD View TFT LCD Digital Color Monitor with BUILT-IN DVR and 32GB SD CARD


Product Information



The QUAD LCD Monitor Can Work With Up To FIVE AUTO SWITCHING COLOR Cameras. Select from Our Many Other Addtional Rear View Backup/Side View Cameras!

For the Rear View Backup System Combo Package (Multiple Rear View Cameras and LCD Monitor), contact us to get FREE CABLES and HUGE DISCOUNT!!!

What You Will Get In The Package

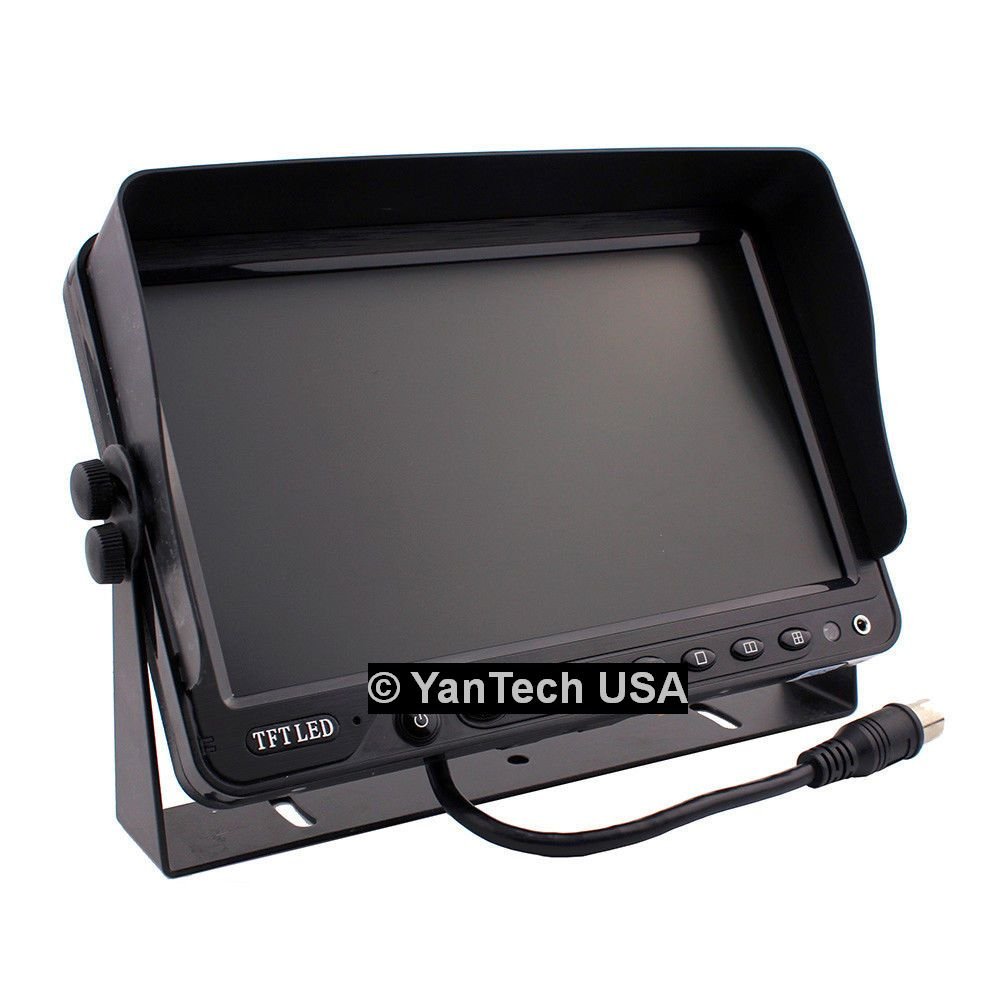

  • One High Resolution 7" COLOR  TFT-LCD Quad Monitor With DVR built-in, 5 Video Inputs, Built-In Speaker, Illuminated Controls, removable sunshade, and Front Panel Controls With On-Screen Menu
  • System Accessories include: Universal Adjustable Monitor Mounting Bracket, sunshade, Video & Audio Input & Control Cable, and Main Power Cable. Notes: See the Accessories Pictures below!
  • Bonus - 32GB SD Card for store recording files
  • English User Manual & Quick Connection Instructions

(Stock Photo Provided By Manufacturer)

(Stock Photo Provided By Manufacturer)

(Stock Photo Provided By Manufacturer)

Quad / Split Screen
The monitor has 6 image models. It can show single, dual, triple, quad image if you switchover AV button (when connecting with 4 cameras). Ideal for 2 side view or any other view as well as rear view.


Monitor Accessories

32GB SD Card - Free Bonus


The QUAD LCD Monitor Has The Following Special Features

  • High Quality COLOR 7" TFT LCD monitor with quad control box function built-in
  • Up to 5 AV inputs can work with up To 5 Auto Switching Cameras
  • Can view one camera image on one full screen or two/three/four camera images on the split-screen simultaneously; Reverse picture delay display function, 0 to 15 seconds can be set (optional).
  • Super sharp picture with 800 x RGB x 480 resolution, Image compression format: H.264
  • Built-in DVR function. High-definition Video Record Function. Comes with a 32GB SD card, which stores the recording files
  • 7 in 4 color LCD vehicle segmentation display, 15 minutes is a segment, the time can be set manually
  • Has both Front Panel Controls with on-screen menu and Remote Control. 16:9 aspect ratio selectable from monitor
  • Screen tilts up/down for more versatile viewing options
  • Includes universal adjustable monitor mounting bracket and sunshade; Monitor can be mounted almost anywhere such as the dashboard, sun visor, center console, windshield, hung from the ceiling, etc
  • Shock resistant, designed specifically for mobile use
  • Monitor viewing angle Up/Down/Left/Right adjustable
  • Automatic brightness control function, Illuminated control buttons light automatically during darkness
  • Built-in loud audio speaker

QUAD Record DVR Monitor Technical Specifications

Display Screen 7" Quad Color TFT LCD System NTSC/PAL Selectable
Speaker Built-in Audio Speaker Shock Resistant Designed Specifically For Mobile Use
Power Supply 12~32V DC


800(H) x 480(V)
LCD Profile Ratio 16:9 Aspect Ratio

Video Input

Up to 5 Channels
Contrast 300:1 Brightness 400cd/m2
Image Compression Format H.264

Image Option


Built in DVR Built in 4 Segmentation Trigger priority CAM 1>CAM 2>CAM 3>CAM 4 + Backup CAM

Net Weight

254 grams


17mm (w) x 12mm (h) x 2mm (d)

QUAD Record DVR Monitor Function And Connection Diagram

Press Button Menu To Enter OSD Menu,You Can Adjust: Brightness, Contrast, Color, Volume, Language, Mirror and Video.

(Stock Photo Provided By Manufacturer)

(Stock Photo Provided By Manufacturer)

(Stock Photo Provided By Manufacturer)

(Stock Photo Provided By Manufacturer)

(Stock Photo Provided By Manufacturer)

(Stock Photo Provided By Manufacturer)



Product Code: YT723SDVR
